COMBO 200

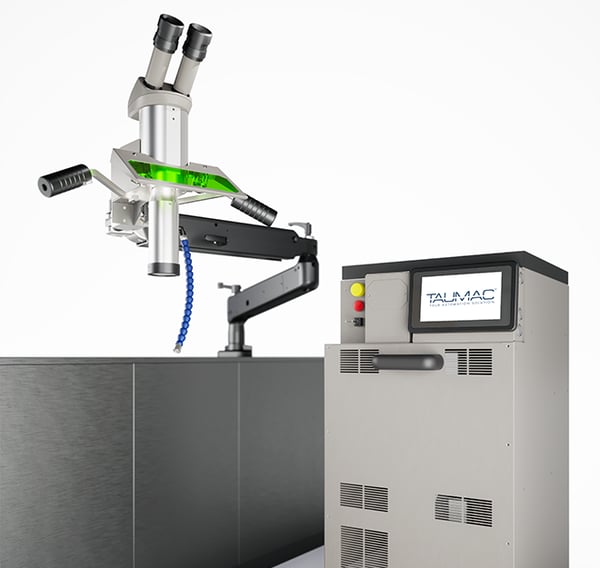

COMBO 200 - Laser welder ideal for the repair of medium and large molds
COMBO 200 - Laser welder ideal for the repair of medium and large molds

COMBO 200

Laser welder ideal for the repair of medium and large molds

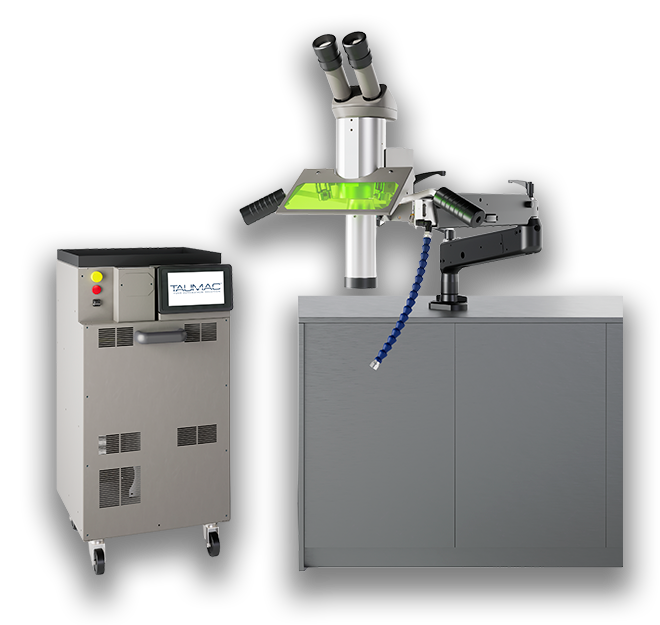

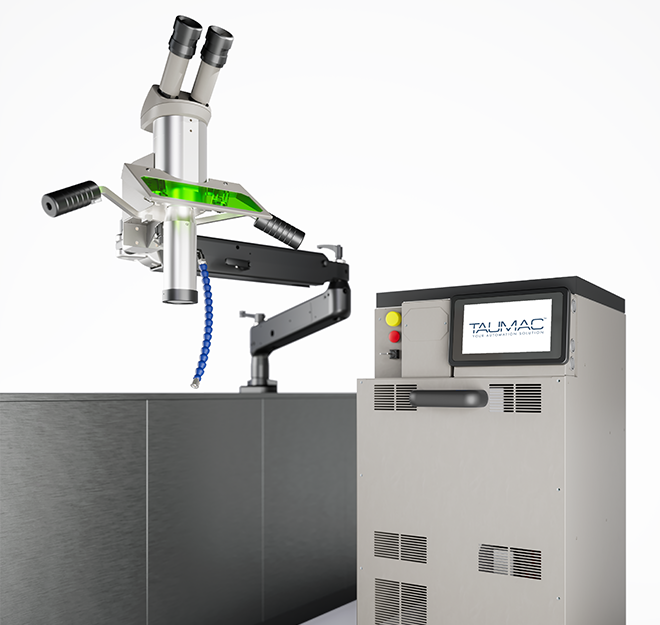

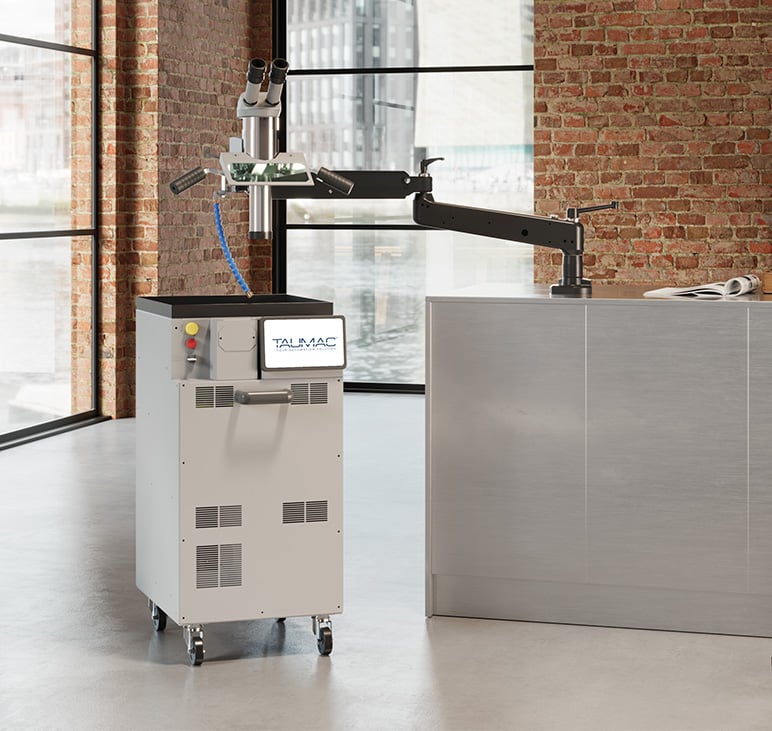

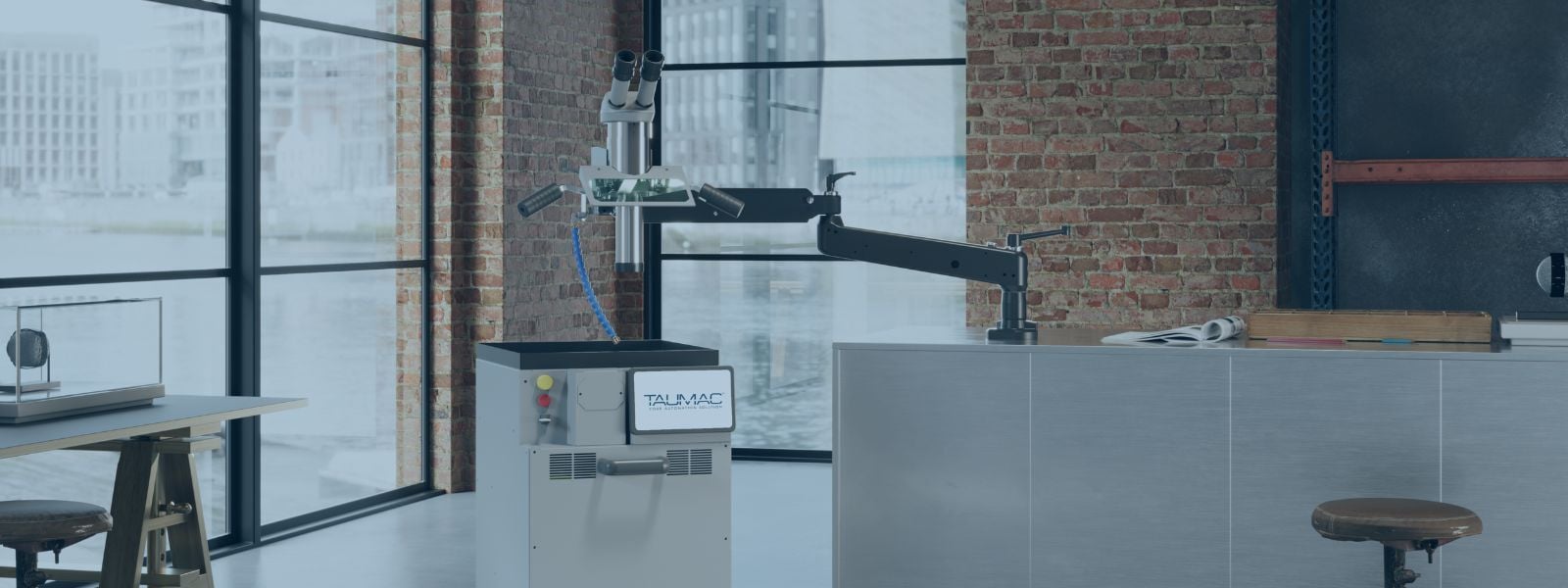

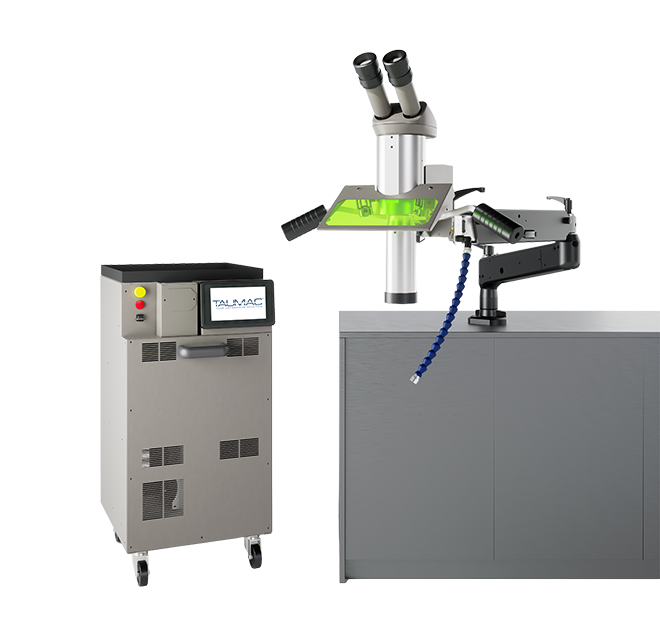

Combo 200 is the laser welding system designed to offer maximum flexibility in welding molds and large industrial parts. Perfect for working on oversized objects in awkward weld positions, without having to move the workpiece.

Key Features:

  • Mobile laser head and wheeled carriage – Allows easy access to any point of the workpiece, even on-machine or directly in the workshop
  • Multi-industry applications – Designed for mold making, automotive, mechanical engineering, and aerospace sectors
  • Welding of complex geometries – Capable of processing inclined, internal, or irregular surfaces thanks to a laser head orientable on two axes (tilt and rotation)
  • Nd:Ce:YAG dual-resonator laser source with peak power up to 10 kW
  • Advanced control system with joystick, 7” touchscreen, and integrated camera
  • Industrial-grade construction engineered for intensive cycles and consistent welding quality
Request info

Applications

  • Welding and repair of large molds
  • Work on non-standard industrial components
  • Micro-repairs on inclined or internal surfaces
  • Closure of defects on castings and tools
  • Welding on reflective materials (e.g., aluminum)
  • Workshop operations, including on assembled parts
  • Sectors: mold making, automotive, aerospace, general industrial manufacturing
COMBO 200
COMBO 200
COMBO 200

Variants

COMBO 200
Laser source and wave lenght
2xNd:Ce: YAG 1064 nm
Average power
110 W
Peak power
15 kWp
Max energy
200J
Max frequency (Hz)
30
Impulse time
0,1 - 20 ms
Spot diameter
0,6 - 2,0 mm
Spot setting
motorized
Wave programs
7 preset pulse shapes
New SMSP wave form
yes
New gaussian smooth spot
yes
Microscope 10X
Leica
Memories cell stored
100
Water cooling system
double - enforced / 6 l
Type
floor standing
Power supply
230 V AC, 50/60 Hz (110 on request) - 4,4 kW
Dimensions (cm)
64x41x84 + welding arm
Weight (kg)
95
Maximum range of action
1360 mm
